Glossary

4 way standard vehicle wiring

This would be the wire used to hard wire your vehicle as long as is has standard wiring.

4 way Wishbone Harnesses

These would be the harnesses used to rewire a standard trailer up to 30 feet. They are called wishbone harnesses because of the two brown (running) wires to go down each side of the trailer. We carry the harnesses in 15', 20', 25' and 30' harnesses.

5 way Wishbone Harness

This harness is for heavier boat trailers with hydraulic brakes. There are still two browns to have running lights down both sides of the trailer, but also a blue wire that connects with the back-up lights to let the trailer know to release the brakes so that the brakes unlock properly and smoothly.

7 way Blade Vehicle end

This is now the most common receptacle for factory prepped vehicles. There are many adapter to go down from this particular plug, making it quite universal.

7 way Blade Vehicle End

The 7 way plug on the trailer allows for a charge line, brakes and back up lights. These are standard on most tandem axle trailers.

7 way Round Pin Vehicle End

This plug is used for heavy duty towing most often and is usually installed on dump trucks, stake trucks and box vans.

7 way Round Pin Trailer End

This plug is used mostly on large trailers used for commercial purposes.

Adjustable Couplers

Excellent for replacing existing adjustable couplers and lunette rings when a standard ball is desired for towing instead of using a pintle hook.

Adjuster

For both Electric and Hydraulic brakes, the adjuster can be loosened or tightened depending on the specific need of the braking system

Bearing Buddy's

This popular item is used to add grease to hubs between repacking the bearings. The zirc fitting on the cap allows you to put in grease with a grease gun to freshen (not replace) the grease.

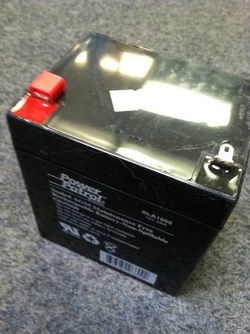

Break Away Battery

12 Volt battery that usually goes into some type of charger or break away kit to protect the trailer and others from further damage if the Break Away is pulled out. This will activate the brakes and slow down the trailer automatically.

Break Away Cable

The actual cable that plugs into the break away switch and when pulled out activates the brakes. This must be attached to the vehicle along with the chains.

Break Away Switch

This is a safety feature and must be wired up to a battery on the trailer. This switch activates the brakes when the pin is pulled as long as the battery is good.

Combo Bars

Caster Wheels

Wheels that attach to the bottom of the jack through a specific notch or pin through the metal tube which is able to swivel on top of the jack wheel.

Combination Pintle Hook

Couplers

Whether it be straight, A-Frame, Hydraulic or Disc, the coupler is the mechanism located at the front of the tongue of your trailer. This mechanism is extremely important as it connects the trailer to the tow vehicle's ball. The hydraulic and Disc braking couplers are more involved and are the form by which the brakes are activated or deactivated while towing.

D-Rings

D-Rings are sold in bolt down form, flush mounted bolt down form and weld on form. The strength and integrity of the D-ring is based on the rating for the D-ring itself and the way in which it is mounted to the trailer.

E-Track Accessories

Electric Backing Plates

Electric backing plates come with all parts needed for the brakes to be repaired, instead of replacing each part piece by piece, you may find it is more time and cost efficient to go with the backing plates.

E Track Accessories

We offer a variety of accessories for mounting onto E-track. We have board brackets, straps, D-ring clips and covers to eliminate the sharp edges of the E-track.

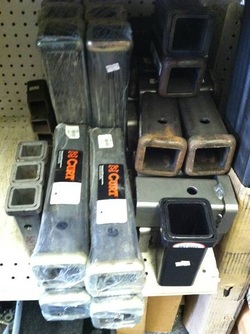

Heavy Duty 2.5" Ball Mounts

We carry the Heavy Duty ball mounts that are needed to pull at the high capacity the 2.5" hitch is rated for.

Hitch Balls

We have all class hitch balls. We carry 1 7/8" balls, 2" balls, and 2 5/16" balls. We also carry bushings to

Hub Drums

Hub Drums are made for trailers with brakes. The standard hub for #3500 axle is the 5 on 4 1/2" bolt pattern with a 10" diameter. We also have a 6 lug hub with the 10" diameter. For heavier duty trailers there are the 6 lug 12" hub and the 8 lug 12" hub.

Hydraulic Backing Plates

The standard 10" Hydraulic backing plate. This is the complete backing plate replacement. This is the part of the brake axle that fluid flows to, to actuate the wheel cylinder and the hydraulic brakes.

Hydraulic Free-Backing Plate

This type of Hydraulic Backing plate allows for the elimination of the use of the back up light to release the brakes. Free-backing plates are able to form this function on their own.

Hydraulic Brake Shoes

Brake shoes for replacement on standard Hydraulic Backing Plates.

Hydraulic Free-Backing Brake Shoes

As with the Free-backing plates, the shoes must be purchase according to what kind of brakes you have. You will need this particular brake shoe setup for your trailer to unlock as you desire to back up.

Jack Foot

All different kinds of different plates and wheels to fit jacks of all different strengths and sizes.

Lunette Rings

Lunette rings are used to as couplers on a variety of heavy duty trailers. The lunette rings require a pintle hook to tow. There are bolt on, weld on and adjustable lunette rings with varying capacities.

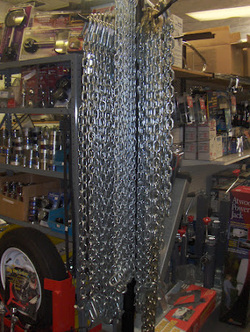

Safety Chain

We sell safety chain in 48" pre-cut lengths with clips on each end. We also sell a variety of chain by the foot so that you can chose your own length.

Sealed Plug in Lights and Side Markers

We have an assortment of plug in ready lights that are submersible as well.

Single Axle Fenders

Fenders are an absolute must for any trailer, they are required by law. We sell a variety of steel fenders that may be welded on, bolted on, or attached with brackets. We have fenders for each size tire. Also, we sell jeep style, round style, round style including the back and galvanized.

Springs: Double eye and Slipper

Springs are the suspension system on trailers that are no torsion axles. It is best to stay with the same rating as the axle for the springs. The springs' function are to flex and prevent the axle from doing so. If a larger spring is put on, you run the chance of the springs being too strong and the axle bending or breaking from the springs not taking the weight as they should. We sell every standard double eye spring along with a variety of slipper springs.

Sway Control Kit

Weight Distribution Head

Weight Distribution Snap up Bracket

Winches

We carry a range of different weight capacity winches to fit for boat of all different sizes.

Winch Posts and Stands

Varying sizes to fit different size boat trailers.

Wiring Clips

Examples of the wiring clips we have available to keep trailer and vehicle wiring as neat as possible.

Electric Brake Shoes

Contains the necessary parts to replace a brake shoe.

Electric Brake Magnets

If there is significant wear on the magnet of your backing plate, but still quite a bit of padding left on the shoe, you may consider just changing the magnets. These magnets run along the inside of the drum, causing the electric brakes to work.
